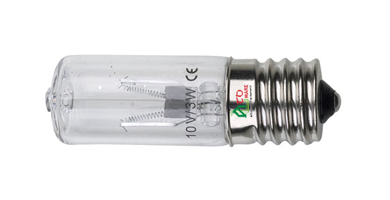

Self-Ballasted Mini UV Lamp (10V/3W)
Features
- Made of quartz glass, classified to ozone
and without ozone.
- Connect into main wire voltage 220V/50Hz or 120V/60Hz
with incandescent lamp or special made capacitor, no need of ballast.
- Switch on-off up to 20,000times.
Applications
- Mini size, more compact. Suitable be
used in electrical appliances, such as refrigerators,
sterilization box,
sterilization cabinet, microwave oven and others. |
 |
| |
Technical Parameters
| Lamp Tube |
Lamp Cap |
Cartons Size (cm) |
Package
(pcs/carton) |
Purchase By Alipay, Wechatpay or others |
| Product Code |
Tube Dia (mm) |
Power (W) |
Lamp Voltage (V) |
Lamp Current (mA) |
Base Face Length (mm) |
254nm UV Intensity at 1m (μW/cm2) |
Type Code |
Material |
| ZW3Z1W(Y)-Z52 (64) |
φ17 |
3 |
11 |
308±20 |
52/64 |
(When there is 30cm between the UV lamp and the tester)
>30μW/cm2 |
E17 |
Nickel Plated Copper |
40.7*22.3*18.2 |
400 |
 |
|
Thanks for visiting our website. We are a professional integrated UV lamp manufacturer, providing a wide range of products, including ballast, UV sterilizer, and toothbrush sterilizer, among others. Relying on superior quality and competitive prices, our UV products are exported to Britain, Russia, Singapore, Malaysia, Thailand, Vietnam and more.
If you require more information about us, please feel free to contact us at Seacon Engineering Equipment. We look forward to working with you. |
|
|
