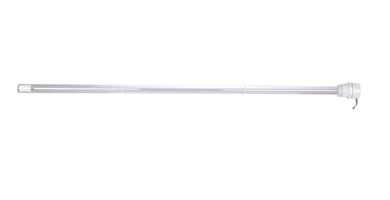

Single Ended High Power UV Lamp, 4 Pins
Features
Special treatment on electrode and quartz tubes to make lifetime longer and improve UV light output. Two different bases, match to quartz glass sleeves of 20mm and 22mm inner diameters. High ozone lamps can produce hydroxyl in the water, dissolve organism, and reduce TOC.
Applications
Disinfect pure water, normal water and medical water, etc. water disinfection equipment waste water treatment to reduce TOC.

Lamp Tube Lamp Base Cartons Size (cm) Pack-
age
(pcs/
carton)

Purchase By Alipay, Wechatpay or others

Product Code Tube Dia (mm) Power (W) Lamp Voltage (V) Lamp Current (mA) Base Face Length (mm) 254nm UV Intensity at 1m (μW/cm2) Type Code Material Length (mm)
ZW10D15W(Y)-Z212 φ15 10 22-39 250 212 21-24 G10q Ceramic 30 42.7*25
*22.5		 50 Purchase
ZW14D15W(Y)-Z287 φ15 14 28-39 350 287 31-35 42.7*31
*22.5		 50 Purchase
ZW15D15W(Y)-Z303 φ15 15 30-40 300 303 33-37 42.3*40
*22.5		 50 Purchase
ZW18D15W(Y)-Z356 φ15 18 34-46 340 356 48-54 47.6*42.3
*22.5		 50 Purchase
ZW23D15W(Y)-Z436 φ15 23 40-55 420 436 62-69 47.6*42.3
*22.5		 50 Purchase
ZW28D15W(Y)-Z550 φ15 28 51-69 370 550 85 62.5*23.3
*49.5		 50 Purchase
ZW37D15W(Y)-Z793 φ15 37 78-101 350 793 110 92.3*23.3
*30.5		 30 Purchase
ZW40D15W(Y)-Z851 φ15 40 81-99 380 851 120-130 92.3*23.3
*30.5		 30 Purchase
ZW55D15W(Y)-Z1149 φ15 55 122-149 320 1149 150-180 122.9*24
*30.5		 30 Purchase
ZW75D15W(Y)-Z1554 φ15 75 173-210 330 1554 180-210 161.5*24
*30.5		 30 Purchase
ZW80D19W(Y)-Z846 φ19 80 120 800-1200 846 240-270 34 92.3*23.3
*30.5		 30 Purchase
ZW120D19W(Y)-Z1149 φ19 120 170 800-1200 1149 330-380 122.9*24
*30.5		 30 Purchase
ZW150D19W(Y)-Z1154 φ19 150 220 800-1200 1554 400-450 122.9*24
*30.5		 30 Purchase
ZW250D19W(Y)-Z1154 φ19 250 190 1600-1800 1554 3000 (in water: 3cm) 161.5*24
*30.5		 30 Purchase
