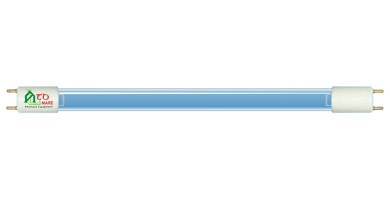

Tubular Double-Ended UV Lamp
Features
Hot cathode, pre-heat start; Average life time: 8,000hrs.
All kinds of sockets and fittings can be available; Ceramic base.
Different diameters of quartz glass and matched caps. Applications
Disinfecting cabinets, microwave ovens, air conditions, air purifiers and other home appliances.
Disinfect the air and surface of goods in the hospitals, schools, restaurants, homes and offices.
Lamp Tube Lamp Cap Cartons Size (cm) Pack-
age
(pcs/
carton)

Purchase By Alipay, Wechatpay or others

Product Code Tube Dia (mm) Power (W) Lamp Voltage (V) Lamp Current (mA) Base Face Length (mm) 254nm UV Intensity at 1m (μW/cm2) Type Code Material Outer Dia. Length (mm)
ZW4S12W(Y)-
Z135		 φ12 (T4) 5 18-24 160 135 12 G5 Plastic 15 22 42.7* 25* 22.5 50 Purchase
ZW4S15W(Y)-
Z135		 φ15 (T5) 7 Ceramic 20 30 Purchase
ZW6S12W(Y)-
Z212		 φ12 (T4) 9 36-48 160 212 18 Plastic 15 22 42.7* 25* 22.5 50 Purchase
ZW6S15W(Y)-
Z212		 φ15 (T5) 11 Ceramic 20 30 Purchase
ZW8S12W(Y)-
Z288		 φ12 (T4) 14 48-64 145 288 28 Plastic 15 30 38* 23* 31.5 80 Purchase
ZW8S15W(Y)-
Z288		 φ15 (T5) 8 55-70 220 331 30 G13 Ceramic 20 30 Purchase
ZW10S12W(Y)-
Z331		 φ12 (T4) 10 15 30 38* 24* 32 80 Purchase
ZW10S15W(Y)-
Z331		 φ15 (T5) 10 20 35 Purchase
ZW15S15W(Y)-
Z437		 φ15 (T5) 14 59-71 300 437 44 20 35 49.5* 22.5* 30 80 Purchase
ZW15S19W(Y)-
Z437		 φ19 (T5) 18 20 35 Purchase
ZW20S15W(Y)-
Z589		 φ15 (T5) 24 68-91 320 589 75 20 35 62.5* 23.3* 49.5 50 Purchase
ZW20S19W(Y)-
Z589		 φ19 (T6) 20 20 35 Purchase
ZW30S15W(Y)-
Z894		 φ15 (T5) 30 105-125 300 894 107 20 35 92.3* 23.3* 30.5 30 Purchase
ZW30S19W(Y)-
Z894		 φ19 (T6) 30 25 38 Purchase
ZW30S25W(Y)-
Z894		 φ25 (T8) 30 25 38 Purchase
ZW40S15W(Y)-
Z1199		 φ15 (T5) 40 110-130 330 1199 117 20 35 122.9* 24* 30.5 30 Purchase
ZW40S19W(Y)-
Z1199		 φ19 (T6) 40 25 38 Purchase
ZW40S25W(Y)-
Z1199		 φ25 (T8) 40 Purchase
