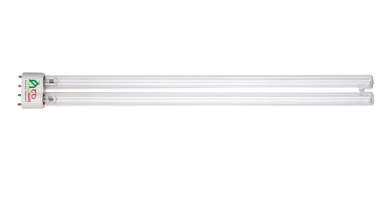

Single Ended UV Lamp, HB Shape
Features
Base: 2G11 or G32q, the latter can be put starter and capacitor inside.
High wattages can be made; high density ozone disinfects big areas.
Reflector or reflector plate matched.
Applications
Medical disinfection and air clean, deodorization and bactericide aquarium UV sterilizers.

Lamp Tube Lamp Cap Cartons Size (cm) Package (pcs/carton)

Purchase By Alipay, Wechatpay or others

Product Code Tube Dia (mm) Power (W) Lamp Voltage (V) Lamp Current (mA) Base Face Length (mm) 254nm UV Intensity at 1m (μW/cm2) Type Code Material
ZW18D17W(Y)-H217 φ17 18 52-64 375 217 57 G32\G2G11 Plastic 29.5*26.7*26.5 50 Purchase
ZW24D17W(Y)-H317 φ17 24 77-97 345 317 94 45*29.5*26.5 50 Purchase
ZW36D17W(Y)-H411 φ17 36 98-118 435 411 147 45*29.5*26.5 50 Purchase
ZW40D17W(Y)-H533 φ17 40 130-150 385 533 155 57.5*29.5*26.5 50 Purchase
ZW55D17W(Y)-H533 φ17 55 110-130 550 533 170 57.5*29.5*26.5 50 Purchase
