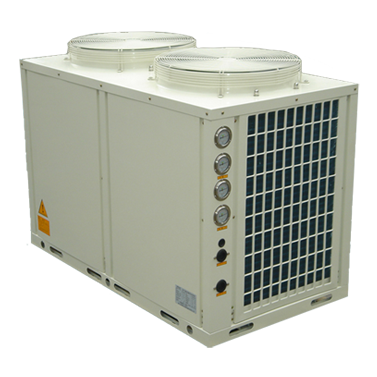

| Commercial and Industrial Heatpump Unit - Heatpump Unit |
| |
 |
| Features/Benefits |
-
-
-
-
-
-
-
-
-
- |
- New compressor special designed for high water
temperature.- Base Frame and external panel made of
polyester powder coated steel.
Water side equiped with efficient tube in tube heat
exchanger.
Reliable compressor with R417A refrigerant.
Flow switch for water flow protection.
Intelligent controller and adjustment by quickmind
microprocessor with possibility or remote control
Carful protection functions such as high pressure, low
pressure, overheating, overload, antifreezing, phase
order, discharge temp., etc.
Air heat exchanger (Fin Coil) with hyrophilic coating
or copper fin
Automatic defrosting function include
Thermostatic expansion valve
General testing an operational test carried out for every
unit before package in factory. |
| |
|
|
|
| Capacity Range From: |
2 - 15 Tons |
For More Detail: |
Download |
|
| MODEL: SCAR-__-HB |
12 |
20 |
25 |
40 |
50 |
80 |
| Rated heating capacity |
BTUH |
27,297 |
45,723 |
54,935 |
90,763 |
109,189 |
180,843 |
| Tons |
2 |
4 |
5 |
8 |
9 |
15 |
| Watt |
8,000 |
13,400 |
16,100 |
26,600 |
32,000 |
53,000 |
| Hot water supply |
T/h |
|
|
|
|
|
|
| Heating input power |
Watt |
2,500 |
4,150 |
4,850 |
8,300 |
9,700 |
16,500 |
| Rated heating input current |
Amp. |
12 |
8 |
9 |
15 |
18 |
30 |
| COP |
3.2 |
3.2 |
3.3 |
3.2 |
3.3 |
3.2 |
| Max running current |
Amp. |
17.1 |
12 |
13 |
24 |
26 |
48 |
| Output water temperature |
Deg. C |
70 Deg. C |
| Power Supply |
V/P/Hz |
220/1/50-60 |
415-440V / 3P / 50-60Hz |
| Noise level |
dB(A) |
53 |
58 |
61 |
63 |
64 |
68 |
| Weight |
KGS. |
115 |
145 |
155 |
80 |
320 |
570 |
| Working temperature range |
Deg. C |
﹣10 Deg. C ~ 43 Deg. C |
| Water temp control precise |
Deg. C |
± 1 Deg. C |
| Throttle type |
|
Electronic expansion valves/Thermostatic expansion valves |
| Refrigerant |
Type |
R417A |
| Compressor |
Type |
Rotary / Scroll |
| Quantity |
1 |
1 |
1 |
2 |
2 |
4 |
| Safety functions |
Overheating protection, phase protection, under-voltage protection, delay-start protection |
| Air source heat |
| exchanger |
Type |
Finned heat exchanger |
| Fan type |
Axial big twist Angle fan |
| Motor power |
Watt |
200 |
300 |
500 |
600 |
600 |
1500 |
| Hot water side heat exchanger |
Type |
High efficient tube in tube heat exchanger |
| Water flow |
m3/H |
1.38 |
2.3 |
2.77 |
4.57 |
5.5 |
9.11 |
| Water pressure |
kPa |
14 |
18 |
21 |
20 |
23 |
25 |
| pipe size |
Inch. |
3/4 |
1 |
1 |
1-1/4 |
1-1/4 |
2 |
| Max. working pressure |
kPa |
1,000 |
1,000 |
1,000 |
1,000 |
1,000 |
1,000 |
|
| NOTES: |
-
- |
Rated hot water working condition:Air source air inlet dry air buld temperature is 20 Deg. C, Wet bulb temperature is
15 Deg. C.
Initial temperature of hot water is 20 Deg. C, Termination temperature of hot water is 70 Deg. C |
|
|
|
