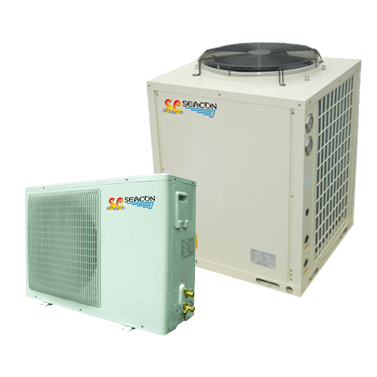

| Commercial and Industrial Heatpump Unit - Heatpump Unit |
| |
 |
| Features/Benefits |
-
-
-
-
-
-
-
-
-
- |
Base Frame and external panel made of polyester
powder coated steel.
Extremely compact structurae, easy demountable for
access
High efficiency compressor with R410A refrigerant
Reverse cycle valve
Intelligent controller and adjustment by quickmind
microprocessor with possibility or remote control
Carful protection functions such as high pressure,
low pressure, overheating, overload, antifreezing,
phase order, discharge temp., etc.
Water side equiped with efficient tube in tube heat
exchanger.
Air heat exchanger (Fin Coil) with hyrophilic coating
or copper fin
Automatic defrosting function include
Thermostatic expansion valve
General testing an operational test carried out for every
unit before package in factory. |
| |
|
|
|
| Capacity Range From: |
3 - 26 Tons |
For More Detail: |
Download |
|
| MODEL: SCAM-__-XB |
12 |
20 |
24 |
40 |
60 |
80 |
100 |
| Water Heater |
| Rated heating capacity |
BTUH |
37,534 |
64,831 |
75,067 |
129,661 |
194,492 |
259,323 |
307,093 |
| Tons |
3 |
5 |
6 |
11 |
16 |
22 |
26 |
| Watt |
11,000 |
19,000 |
22,000 |
38,000 |
57,000 |
76,000 |
90,000 |
| Hot water supply |
T/h |
0 |
0 |
0 |
1 |
1 |
2 |
2 |
| Heating input power |
Watt |
2,440 |
4,070 |
4,880 |
8,150 |
12,220 |
16,740 |
18,660 |
| Rated heating input current |
Amp. |
11.23 |
17.76 |
22.46 |
15.53 |
23.28 |
31.89 |
34.87 |
| COP |
4.51 |
4.67 |
4.51 |
4.66 |
4.66 |
4.54 |
4.82 |
| Water Chiller |
| Rated cooling capacity |
BTUH |
25,386 |
42,311 |
50,773 |
84,621 |
126,898 |
169,242 |
225,884 |
| Tons |
2.12 |
3.53 |
4.23 |
7.05 |
10.57 |
14.1 |
18.82 |
| Watt |
7,440 |
12,400 |
14,880 |
24,800 |
37,190 |
49,600 |
66,200 |
| Water flow |
m3/H |
1.28 |
2.13 |
2.56 |
4.27 |
6.4 |
8.53 |
11.39 |
| Input power |
Watt |
2,580 |
4,300 |
5,160 |
8,600 |
12,960 |
17,300 |
22,400 |
| Rated input current |
Amp. |
11.87 |
17.6 |
23.75 |
15.2 |
22.8 |
30.4 |
41 |
| EER |
2.88 |
2.88 |
2.88 |
2.88 |
2.87 |
2.87 |
2.96 |
| Heating for A/C |
| Rated Heating capacity |
BTUH |
27,024 |
45,040 |
54,048 |
90,081 |
135,087 |
180,161 |
241,580 |
| Tons |
2 |
4 |
5 |
8 |
11 |
15.01 |
20.13 |
| Watt |
7,920 |
13,200 |
15,840 |
26,400 |
39,590 |
52,800 |
70,800 |
| Water flow |
m3/H |
1.36 |
2.27 |
2.72 |
4.54 |
6.81 |
9.08 |
12.18 |
| Input power |
Watt |
2.4 |
4.00 |
4.80 |
8.00 |
11.97 |
16.00 |
22.00 |
| Rated input current |
Amp. |
11.05 |
7.6 |
22.09 |
15.2 |
22.8 |
30.4 |
40 |
| COP |
7 |
3 |
3 |
3 |
3 |
3.31 |
3.3 |
3.22 |
| Chiller and Water Heater |
| Rated cooling capacity |
BTUH |
26,615 |
44,358 |
53,229 |
88,374 |
132,732 |
177,090 |
208,823 |
| Tons |
2.22 |
3.7 |
4.44 |
7.36 |
11.06 |
14.76 |
17.4 |
| Watt |
7,800 |
13,000 |
15,600 |
25,900 |
38,900 |
51,900 |
61,200 |
| Water flow |
m3/H |
1.34 |
2.24 |
2.68 |
4.45 |
6.69 |
8.93 |
10.53 |
| Heating capacity |
Watt |
10,500 |
16,500 |
21,000 |
33,000 |
49,500 |
66,000 |
77,600 |
| Heating Water flow |
T/h |
1.81 |
2.84 |
3.61 |
5.68 |
8.51 |
11.35 |
13.35 |
| Input power |
Watt |
2,300 |
3,700 |
4,600 |
7,400 |
11,170 |
14,900 |
17,300 |
| Rated input current Amp.EER + COP |
10.59 |
7.1 |
21.17 |
14.2 |
21.28 |
28.4 |
32 |
| 7.96 |
7.97 |
7.96 |
7.96 |
7.91 |
7.91 |
8.02 |
| Rated Outlet Temperature |
Deg. C |
55 Deg. C |
| Max. Outlet Temperature |
Deg. C |
60 Deg. C |
| Power Supply |
V/P/Hz |
220/1/
50-60 |
415-440/3/
50-60 |
220/1/
50-60 |
415-440/3/50-60 |
| Noise level |
dB(A) |
50 |
55 |
55 |
55 |
58 |
60 |
60 |
| Weight |
KGS. |
110 |
175 |
220 |
340 |
610 |
830 |
930 |
| Throttle type |
Electronic expansion valves/thermostatic expansion valves |
| Refrigerant |
Type |
R410A |
| Compressor |
Type |
Rotory / Scroll |
| Quantity |
PC |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| Safety functions |
Overheating protection, phase protection, under-voltage protection, delay-start protection |
| Air source heat exchanger |
Type |
Finned heat exchanger |
| Quantity |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| Fan type |
Axial big twist Angle fan |
| Motor power |
Watt |
200 |
300 |
370 |
600 |
1200 |
1500 |
1500 |
| Hot water side heat exchanger |
Type |
High efficient tube in tube heat exchanger |
| Water flow |
m3/H |
1.89 |
3.27 |
3.78 |
6.54 |
9.8 |
13.07 |
15.48 |
| Water pressure |
kPa |
27 |
32 |
30 |
36 |
42 |
46 |
48 |
| pipe size |
inch. |
3-Apr |
1 |
1 |
1/1/2004 |
1/1/2002 |
2 |
2 |
| Max. working pressure |
kPa |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
| Air condition side heat exchanger |
Type |
High efficient plate heat exchanger |
| Water flow |
m3/H |
1.34 |
2.24 |
2.68 |
4.45 |
6.69 |
8.93 |
10.53 |
| Water pressure |
kPa |
12 |
13 |
12 |
15 |
40 |
45 |
47 |
| pipe size |
inch. |
3/4 |
1 |
1 |
1-1/4 |
1-1/2 |
2 |
2 |
| Max. working pressure |
kPa |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
