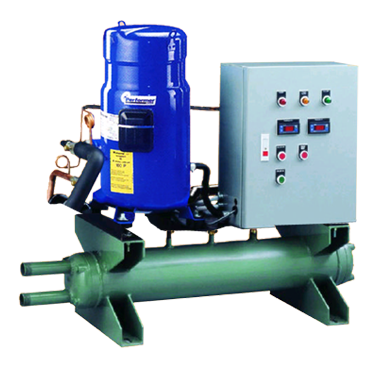

Package Water Cooled Condensing Unit

Features/Benefits
-	Quality design and construction make the PWC-CU (Water-Cooled) units the preferred choice Easy installation. The PWC-CU condenser has a compact design that fits through a standard door opening and requires minimal indoor space. The PWC-CU condenser is delivered as a complete package for easy installation. There are no extra controls, clocks, starters, or other items to install. The PWC-CU unit also provides a single location electrical power entrance (using the accessory field installed control power transformer) and quick, easy piping. The PWC-CU units are designed in a quick start-up is assured once installation is complete, since each PWC-CU unit is manufactured at an ISO 9002-listed manufacturing facility to guarantee quality. In addition, all PWC-CU units are tested under load at the factory to provide reliable start-up.

Capacity Range From:

6.8 - 21.9 Tons

For More Detail:

Download

MODEL: PWC-CU-H		007	009	010	012

Nominal Cooling
Capacity	BTUH	81240	89700	104400	131200
	Tons	6.7	7.5	9	11
	KWH	24	26	31	38
No. Of Circuits		1
Compressor	Type	Hermetic
	HP.	7.5	9	10	12
	Qty.	1	1	1	1
Water Cooled Condenser
Water Flowrate	GPM	19	24	29	34
Entering / Leaving Water Temp.	°F	90 /100
Entering / Leaving Water Temp.	°C	32 / 38
Water Pressure Drop	Ft. WG	11.5	10.2	14.9	9.5
No. of Water Passes		4
Water Connection In / Out	(mm) (in)	(25) (1)		(38) (1-1/2)
Qty./Unit		1
Refrigerant	Type	R-22 (R-407C On Request Only)
Refrigerant	Charge	Holding
Compressor (Each)	V/P/Hz	380-440V / 3P / 50-60Hz
RLA.	Amp.	15.8	19.3	21.1	27.6
LRA.	Amp.	91.1	96.5	104	135
Weight Operation	Kgs.	230	230	268	310

MODEL: PWC-CU-H		15	18	20	25

Nominal Cooling
Capacity	BTUH	162480	179400	208800	262200
	Tons	14	15	17	21.85
	KWH	48	53	61	77
No. Of Circuits		2
Compressor	Type	Hermetic
	HP.	7.5	9	10	12
	Qty.	2	2	2	2
Water Cooled Condenser
Water Flowrate	GPM	2 x 19	2 x 24	2 x 29	2 x 34
Entering / Leaving Water Temp.	°F	90 /100
Entering / Leaving Water Temp.	°C	32 / 38
Water Pressure Drop	Ft. WG	2 x 11.5	2 x 10.2	2 x 14.9	2 x 9.5
No. of Water Passes		4
Water Connection In / Out	(mm) (in)	(2 x 25) (2 x 1)		(2 x 38) (2 x 1-1/2)
Qty./Unit		2
Refrigerant	Type	R-22 (R-407C On Request Only)
Refrigerant	Charge	Holding
Compressor (Each)	V/P/Hz	380-440V / 3P / 50-60Hz
RLA.	Amp.	15.8	19.3	21.1	27.6
LRA.	Amp.	91.1	96.5	104	135
Weight Operation	Kgs.	593	602	656	780

NOTES:
- - - - - - - -	RLA = Rated Load Amp. LRA = Locked Rotor Amp. * Nominal Cooling Capacity Based on 3°C Suction Temp. Liquid Suncooled -9.4 °C Fouling Factor 0.0005 Ft ².h.F / Btu in Chiller Temperature: 1 °C = 33.8 °F 1 °F = -17.2 °C Air Flow: 1 CFM = 1.699011 CMH
