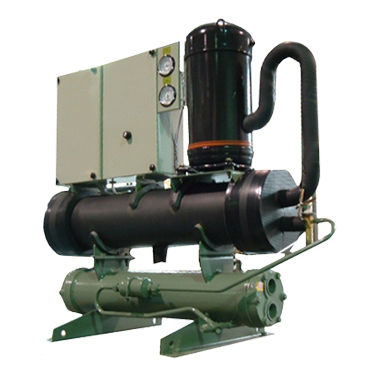

| Package Water Cooled Chiller Unit |
| |
 |
| Features/Benefits |
-
-
-
- |
Quality design and construction make the PWC-CWB
(Water-Cooled) units the preferred choice
Easy installation The PWC-CWB chiller has a
compact design that fits through a standard door
opening and requires minimal indoor space. The
PWC-CWB chiller is delivered as a complete package
for easy installation. There are no extra controls,
clocks, starters, or other items to install.
The PWC-CWB unit also provides a single location
electrical power entrance (using the accessory
field-installed control power transformer) and quick,
easy piping.
The PWC-CWB units are designed in a quick start-up
is assured once installation is complete, since each
PWC-CWB unit is manufactured at an ISO 9002-listed
manufacturing facility to guarantee quality. In addition,
all PWC-CWB units are tested under load at the factory
to provide reliable start-up. |
| |
|
|
|
| Capacity Range From: |
0.83 - 5 Tons |
For More Detail: |
Download |
|
| MODEL: PWC-CWB-H |
007 |
009 |
010 |
012 |
015 |
018 |
020 |
025 |
| Nominal Cooling Capacity |
|
 |
|
|
|
|
|
|
|
| BTUH |
81,240 |
89,700 |
104,400 |
131,200 |
162,480 |
179,400 |
208,800 |
262,200 |
| Tons |
6.7 |
7.5 |
8.7 |
11 |
14 |
15 |
17 |
21.85 |
| KWH |
23.8 |
26 |
30.6 |
38.4 |
48 |
53 |
61 |
77 |
| No. Of Circuits |
1 |
2 |
| Compressor |
Type |
Hermetic |
| HP. |
8 |
9 |
10 |
12 |
8 |
9 |
10 |
12 |
| Qty./Unit |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
| Water Cooled Condenser |
| Water Flowrate |
GPM |
19 |
24 |
29 |
34 |
2 x 19 |
2 x 24 |
2 x 29 |
2 x 34 |
| Entering / Leaving Water Temp. |
°F |
90 / 100 |
| °C |
32 / 38 |
| Water Pressure Drop |
Ft. WG |
11.5 |
10.2 |
14.9 |
9.5 |
2 x 11.5 |
2 x 10.2 |
2 x 14.9 |
2 x 9.5 |
| No. of Water Passes |
4 |
| Water Connection In / Out |
(mm) (in) |
(25) (1) |
(38) (1-1/2) |
(2 x 25) (2 x 1) |
(2 x 38) (2 x 1-1/2) |
| Qty./Unit |
1 |
2 |
| WATER CHILLER |
| No. of Circuits |
1 |
2 |
| Chilled Water Flowrate |
GPM |
16 |
18 |
21 |
26 |
32 |
36 |
42 |
52 |
| Chilled Water Temp. In/Out |
°F |
55 / 45 |
| °C |
13 / 7 |
| Chilled Water Pressure Drop |
Ft. WG |
1.28 |
1.73 |
2.76 |
3.92 |
1.95 |
0.96 |
1.19 |
2.07 |
| Water Connection In / Out |
mm |
1-1/4 |
1-1/2 |
2 |
| Inch |
32 |
38 |
50 |
| Qty. / Unit |
|
1 |
| Refrigerant |
Type |
R-22 (R-407C On Request Only) |
| Charge |
Holding |
| Compressor (Each) |
V/P/Hz |
380-440V / 3P / 50-60Hz |
| RLA. |
Amp. |
15.8 |
19.3 |
21.1 |
27.6 |
15.8 |
19.3 |
21.1 |
27.6 |
| LRA. |
Amp. |
91.1 |
96.5 |
104 |
135 |
91.1 |
96.5 |
104 |
135 |
| Weight Operation |
Kgs. |
230 |
230 |
268 |
310 |
593 |
602 |
656 |
780 |
|
| NOTES: |
-
-
-
-
-
-
- |
RLA = Rated Load Amp.
LRA = Locked Rotor Amp.
* Nominal Cooling Capacity Based on 3°C Suction Temp. and 35 °C Ambient Temp.
Fouling Factor 0.0005 Ft ².h.F / Btu in Chiller
Temperature: 1 °C = 33.8 °F
1 °F = -17.2 °C
Air Flow: 1 CFM = 1.699011 CMH |
|
|
|
