| Floor Standing Unit |
| |
 |
| Features/Benefits |
-
-
-
- |
Vertical arrangements for heating, cooling, ventilation
applications
Small footprint assures rigging ease and reduced
space requirements
High-efficiency fan minimizes surging and turbulence
and reduces operating costs
Exclusive Nu-Fin coil surface provides peak heat
transfer. We delivers the air handler
components for
your stringent specification requirements. The FS-DX
series floor standing
unit are compact and fully
assembled; they combine versatility with economical,
dependable performance. |
| |
|
|
|
| Capacity Range From: |
0.83 - 10 Tons |
For More Detail: |
Download |
|

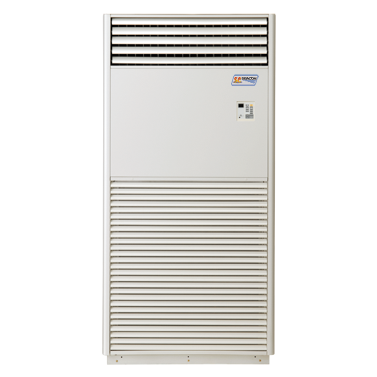

| Fan coil unit model: FS-DX |
10 |
12 |
12-1 |
16 |
20 |
30 |
40 |
| Condensing Unit Model |
| GS-V-CU /FG-H-CU |
30 |
36 |
363 |
50 |
60 |
80 |
120 |
| Nominal capacity |
|
 |
|
|
|
|
|
|
| BTUH |
30,710 |
35,830 |
34,800 |
50,000 |
60,000 |
80,000 |
120,000 |
| Tons |
2.6 |
3 |
2.9 |
4.2 |
5 |
6.7 |
10 |
| Watt |
9,000 |
10,500 |
10,200 |
14,700 |
17,600 |
23,400 |
35,200 |
Rated Air Flow At
High Speed |
CFM |
1,000 |
1,200 |
1,600 |
2,000 |
3,000 |
4,000 |
| CMH |
1,700 |
2,040 |
2,720 |
3,400 |
5,100 |
6,800 |
| Fan Coil Unit |
Type |
Free Blow Floor Standing Type |
| Evaporator Fan |
Type |
Multi Blade Centrifugal Fan |
| Motor |
Watt |
356 |
480 |
704 x 2 |
| Amp. |
1.64 |
2.84 |
3.2 x 2 |
| Power Supply |
V/P/Hz |
208-220V / 1P/ 50-60Hz |
| Coil |
Type |
Aluminium Louver Slit Fin With Innergroove Tube |
| Control |
Type |
Built In Digital Thermostat |
| Expansion Device |
Type |
Capillary Tube / Thermoststic Expansion Valve |
| Air Filter |
Type |
Washable P. P. Net |
| Connection |
| Suction Line (OD) |
Inch |
3/4 |
7/8 |
1-1/8 |
1-3/8 |
| Liquid Line (OD) |
Inch |
3/8 |
1/2 |
3/4 |
7/8 |
| Drain Line (OD) |
Inch |
7/8 |
| Weight |
KGS. |
85 |
86 |
109 |
110 |
145 |
190 |
| Condensing Unit: GS-V / FG-H |
| Type |
Horizontal Blow Steel Cabinat Type / Vertical Blow Fibre Glass Cabinat |
| Compressor |
Type |
Rotory / Scroll / Reciprocate Type |
| Power Input |
Watt |
3150 |
3450 |
3110 |
4430 |
5180 |
3430 x 2 |
5180 x 2 |
| Rated Current |
Amp. |
14.1 |
15.8 |
5.5 |
8.1 |
8.9 |
6.3 x 2 |
8.9 x 2 |
| Protection Devices |
Type |
Internal Overload Protection |
| Power Supply |
V/P/Hz |
208-220V / 1P/ 50-60Hz |
| Condenser Fan |
Type |
Propeller Fan |
| Motor 1 Speed |
| Watt |
193 |
193 x 2 |
193 x 4 |
| Amp. |
0.89 |
0.89 x 2 |
0.89 x 4 |
| Power Supply |
V/P/Hz |
208-220V / 1P/ 50-60Hz |
380-440V / 3P / 50-60Hz |
| Condenser Oil |
Type |
Aluminium Louver Slit Fin With Innergroove Tube |
| Refrigerant (Holding Charge) |
Type |
R-22 (R-407C On Requset Only) |
| Connection |
| Connection |
Type |
Sweat Type |
| Suction Line (OD) |
Inch |
3/4 |
7/8 |
1-1/8 |
1-3/8 |
| Liquid Line (OD) |
Inch |
3/8 |
1/2 |
3/4 |
7/8 |
| Weight |
KGS. |
88 |
92 |
110 |
120 |
200 |
240 |
|
| NOTES: |
-
- |
GS-V-CU: Vertical Steel Cabinat condensing Unit
FBG-H-CU: Horizontal Fibre Class Cabinat Condensing Unit |
|
|
