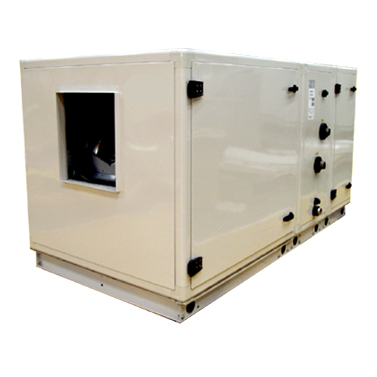

Double Skin Air Handling Unit (Chille Water)

Features/Benefits
-

-

-

- 		Horizontal arrangements for heating, cooling, ventilation,
and VAV applications
Small footprint assures rigging ease and reduced space
requirements
High-efficiency fan minimizes surging and turbulence
and reduces operating costs
Exclusive Nu-Fin coil surface provides peak heat
transfer. We delivers the air handler components for
your stringent specification requirements. The DS-AHU
series air handlers are compact and fully assembled;
they combine versatility with economical, dependable
performance.

Capacity Range From: 3 - 125 Tons For More Detail: Download
MODEL: DS-CW-AHU-H 001 002 003 004 005
    Purchase Purchase Purchase Purchase Purchase
Norminal Capacity Btu/h 39,000 54,000 75,000 112,500 150,000
Norminal Tonnage Tons 3 4.5 6.3 9 12.5
Norminal Kilowatt-Hour KWH 11 16 22 33 44
Air Flow CFM 1,300 1,800 2,500 3,750 5,000
CMH 2,209 3,058 4,248 6,371 8,495
Internal Static Pressure in. wg 0.831 1.36 1 1 1.36
External Static Pressure in. wg 0.401 0.401 0.5 0.5 1
Total Static Pressure in. wg 1.232 1.761 1.86 1.86 2.11
Standard Width (mm) mm 750 900 1050 1150 1,500
Standard Height (mm) mm 750 850 900 1050 1050
Coil Section
4-6R section Length  mm 500 500 500 500 500
Tube Inch 1/2" 1/2" 1/2" 1/2" 1/2"
Row 4 4 4 4 4 4
FPI 10 10 10 10 10 10
Fan Section Length mm 900 950 1000 1050 1250
Motor
Power H.P. 1 2 3 4 5.5
Rev. (Full load speed) R.P.M. 1420 1425 1425 1430 1440
Pole 4 4 4 4 4
Power Supply V/P/Hz 440/3/60
Rev. (Fan speed) R.P.M. 1820 1790 1570 1270 1046
Blower Small Size
Model ADZ-180 ADZ-200 ADZ-225 ADZ-280 ADZ-355
Motor Pully 5.5 1A 7 1A 6 2A 5 2A 6 2A
Blower Pulley 4 1A 5.5 1A 5.5 2A 5.5 2A 8 2A
Blower Big Size
Model - - - - -
Motor Pully - - - - -
Blower Pulley - - - - -
Filter Box Panel, Short Length mm - 700 700 700 700

MODEL: DS-CW-AHU-H 006 007 008 009 010
    Purchase Purchase Purchase Purchase Purchase
Norminal Capacity Btu/h 187,500 225,000 262,500 315,000 375,000
Norminal Tonnage Tons 16 18.8 22 26 31
Norminal Kilowatt-Hour KWH 55 66 77 92 110
Air Flow CFM 6,250 7,500 8,750 10,500 12,500
CMH 10,619 12,743 14,866 17,840 21,238
Internal Static Pressure in. wg 1 1 1 1.36 1.36
External Static Pressure in. wg 1 0.75 1 1 1
Total Static Pressure in. wg 2.11 2.11 2.36 2.36 2.36
Standard Width (mm) mm 1,800 1900 1900 2000 2,300
Standard Height (mm) mm 1050 1200 1350 1500 1500
Coil Section
4-6R section Length  mm 500 500 500 500 500
Tube Inch 1/2" 1/2" 1/2" 1/2" 1/2"
Row 4 4 4 4 4 4
FPI 10 10 10 10 10 10
Fan Section Length mm 1250 1350 1350 1450 1650
Motor
Power H.P. 5.5 7.5 10 10 15
Rev. (Full load speed) R.P.M. 1440 1445 1445 1445 1450
Pole 4 4 4 4 4 4
Power Supply V/P/Hz 440/3/60
Rev. (Fan speed) R.P.M. 1053 918 875 885 818
Blower Small Size
Model ADZ-355 ADZ-400 ADZ-450 ADZ-450 ADZ-500
Motor Pully 6 2A 5 2B 5.5 2B 5.5 2B 5 3B
Blower Pulley 8 2A 8 2B 9 2B 9 2B 9 3B
Blower Big Size
Model - - - ADZ-500 ADZ-560
Motor Pully - - - 5.5 2B 5 3B
Blower Pulley - - - 10 2B 10 3B
Filter Box Panel, Short Length mm 700 700 700 700 700

MODEL: DS-CW-AHU-H 11 12 13 14 15
    Purchase Purchase Purchase Purchase Purchase
Norminal Capacity Btu/h 450,000 525,000 600,000 750,000 900,000
Norminal Tonnage Tons 38 43.8 50 63 75
Norminal Kilowatt-Hour KWH 132 154 176 220 263.7
Air Flow CFM 15,000 17,500 20,000 25,000 30,000
CMH 25,485 29,733 33,980 42,475 50,970
Internal Static Pressure in. wg 1 1 1 1 1
External Static Pressure in. wg 1 2 2 1.5 2
Total Static Pressure in. wg 3 2.86 2.86 2.86 3.36
Standard Width (mm) mm 2300 2400 2550 2700 3100
Standard Height (mm) mm 1,700 1900 2150 2350 2,350
Coil Section
4-6R section Length  mm 500 500 500 500 500
Tube Inch 1/2" 1/2" 1/2" 1/2" 1/2"
Row 4 4 4 4 4
FPI 10 10 10 8 8
Fan Section Length mm 1750 2000 2150 2150 2250
Motor
Power H.P. 15 20 20 25 30
Rev. (Full load speed) R.P.M. 1450 1455 1455 1455 965
Pole 4 4 4 4 6
Power Supply V/P/Hz 440/3/60
Rev. (Fan speed) R.P.M. 750 685 617 618 582
Blower Small Size
Model ADZ-560 ADZ-630 ADZ-710 ADZ-710 ADZ-800K1
Motor Pully 5.5 3B - 6 4B 6 4B -
Blower Pulley 10 3B - 14 4B 14 4B -
Blower Big Size
Model ADZ-630 ADZ-710 ADZ-800 ADZ-800 ADZ-900K1
Motor Pully 5.5 3B 6 4B 6 4B 6 4B -
Blower Pulley 12 3B 14 4B 16 4B 16 4B -
Filter Box Panel, Short Length mm 700 700 700 700 700

MODEL: DS-CW-AHU-H 16 17 18 19 20
Norminal Capacity Btu/h 990,000 1,125,000 1,300,000 1,500,000 -
Norminal Tonnage Tons 83 94 108 125 -
Norminal Kilowatt-Hour KWH 290.1 329.6 380.9 439.5 -
Air Flow CFM 33,000 37,500 43,500 50,000 -
CMH 56,067 63,713 73,907 84,951 -
Internal Static Pressure in. wg 1 1 1.36 1.36 -
External Static Pressure in. wg 2 2.5 2.5 2.5 -
Total Static Pressure in. wg 3.36 3.86 3.86 3.86 -
Standard Width (mm) mm 3400 3500 3700 3700 -
Standard Height (mm) mm 2350 2600 2800 3200 -
Coil Section
4-6R section Length  mm 500 500 500 500 -
Tube Inch 1/2" 1/2" 1/2" 1/2" -
Row 4 4 4 4 -
FPI 8 8 8 8 -
Fan Section Length mm 2250 2400 2400 2400 -
Motor
Power H.P. 40 40 50 60 -
Rev. (Full load speed) R.P.M. 965 965 965 970 -
Pole 6 6 6 6 -
Power Supply V/P/Hz 440/3/60
Rev. (Fan speed) R.P.M. 584 542 561 562 -
Blower Small Size
Model ADZ-800K1 ADZ-900K2 ADZ-900K2 ADZ-900K2 -
Motor Pully - - - - -
Blower Pulley - - - - -
Blower Big Size
Model ADZ-900K1 ADZ-1000K2 ADZ-1000K2 ADZ-1000K2 -
Motor Pully - - - - -
Blower Pulley - - - - -
Filter Box Panel, Short Length mm 700 700 700 700 -
