| HVAC Coil Cabinet: Chilled Water and Direct Expansion |
|
| |
|
|
|
|
| Model: |
|
|
|
|
| |
|
|
|
|
 |
Features/Benefits

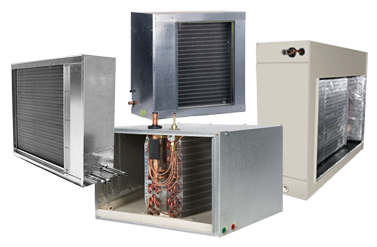

SEACON fresh air pre cooling coil cabinet is a advance design which enable you to bring the outdoor air down to required temperature. By doing this, You are able to control the fresh air temperature before entering any air handling unit or service location. |
| |
|
| |
Type of cabinet with difference combination:
• Fresh Air Pre Cooling Coil Cabinet Unit
• Self Contain Fresh Air Pre Cooling Coil Cabinet Unit
• Fresh Air Pre Cooling Coil Cabinet Unit with blower Fan
Fresh Air Pre Cooling Coil Cabinet Unit
This unit are connected to any existing or New air handling unit which the fresh air temperature entering the air handling are higher than the design required temperature. By having this unit connected to our pre-selected condensing unit, the temperature of fresh air is reduce before mixing with the return air.
Fresh Air Pre Cooling Coil Cabinet Unit with blower Fan
This unit are connected to any existing or New air handling unit which the fresh air temperature entering the air handling are higher than the design required temperature and located at a distance longer then the return air which fresh air flow are not adequate. This
addition blower is added as a booster fan to allow the fresh air are properly supply to the air handling unit. By having this unit connected to our pre-selected condensing unit, the temperature of fresh air are reduce and boosted air flow before mixing with the return air.
Self-Contain Fresh Air Pre Cooling Coil Cabinet Unit
This unit are connected to any existing or New air handling unit which the fresh air temperature entering the air handling are higher than the design required temperature. This unit is self-contain which include the condensing unit with the pre cooling coil cabinet. It can be mounted to any fresh air inlet which has adequate air flow. A booster fan can be added to this unit as a full package unit, but do note that the unit size will be very large.
There is a wide variety of casing other options, including:
• Powder Coated Painted
• Weather Proofing Coated
• Aluminum
• Stainless Steel |
| |
|
|
|
|
Modeular Type, Single Skin, Double Skin of 1" Panel,
A Multiple Choice of Insulation Material. " Direct Expansion Fresh air Pre Cooled Unit " |
| |
|
|
|
|
| Model Range: 3.3 ~18.8 Tons. |
| MODEL: DS-DX-AHU-H |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
| Norminal Capacity |
Btu/h |
39,000 |
54,000 |
75,000 |
112,500 |
150,000 |
187,500 |
225,000 |
| Norminal Tonnage |
Tons |
3.3 |
4.5 |
6.3 |
9.4 |
12.5 |
15.6 |
18.8 |
| Norminal Kilowatt-Hour |
KWH |
11.4 |
15.8 |
22 |
33 |
44 |
54.9 |
65.9 |
| Air Flow |
CFM |
1,300 |
1,800 |
2,500 |
3,750 |
5,000 |
6,250 |
7,500 |
|
CMH |
2,209 |
3,058 |
4,248 |
6,371 |
8,495 |
10,619 |
12,743 |
| Static Pressure |
in. wg |
1.232 |
1.761 |
1.86 |
1.86 |
2.11 |
2.11 |
2.11 |
| Standard Width (mm) |
Width (mm) |
800 |
900 |
1150 |
1450 |
1800 |
1700 |
1700 |
| Standard Height (mm) |
Height (mm) |
800 |
850 |
900 |
1050 |
1050 |
1150 |
1500 |
| Coil Section |
| 4-6 Row Section Length |
(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
| Tube |
Inch |
3/8" |
3/8" |
3/8" |
3/8" |
3/8" |
3/8" |
3/8” |
| Filter Box Panel (Optional) |
| Short Length |
mm |
700 |
700 |
700 |
700 |
700 |
700 |
700 |
| Filter |
| Hepa Filter 12”x24”x12” |
- |
- |
1 |
- |
1 |
2 |
- |
| Hepa Filter 24”x24”x12” |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
|
| |
|
|
|
|
|
| Model Range: 21.9 ~56.25 Tons. |
| MODEL: DS-AHU-H |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
| Norminal Capacity |
Btu/h |
262,500 |
315,000 |
375,000 |
450,000 |
525,000 |
600,000 |
675,000 |
| Norminal Tonnage |
Tons |
21.9 |
26.3 |
31.3 |
37.5 |
43.8 |
50 |
56.25 |
| Norminal Kilowatt-Hour |
KWH |
76.9 |
92.3 |
110 |
131.9 |
153.8 |
175.8 |
219.8 |
| Air Flow |
CFM |
8,750 |
10,500 |
12,500 |
15,000 |
17,500 |
20,000 |
22,500 |
|
CMH |
14,866 |
17,840 |
21,238 |
25,485 |
29,733 |
33,980 |
38,250 |
| Static Pressure |
in. wg |
2.36 |
2.36 |
2.36 |
2.61 |
2.86 |
2.86 |
2.86 |
| Standard Width (mm) |
Width (mm) |
1800 |
2100 |
2400 |
2400 |
2700 |
2700 |
2700 |
| Standard Height (mm) |
Height (mm) |
1500 |
1500 |
1500 |
1800 |
1800 |
1900 |
2100 |
| Coil Section |
| 4-6 Row Section Length |
(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
| Tube |
Inch |
3/8” |
1/2" |
1/2" |
1/2" |
1/2" |
1/2" |
1/2" |
| Filter Box Panel (Optional) |
| Short Length |
mm |
700 |
700 |
700 |
700 |
700 |
700 |
700 |
| Filter |
| Hepa Filter 12”x24”x12” |
2 |
- |
2 |
3 |
4 |
4 |
- |
| Hepa Filter 24”x24”x12” |
4 |
6 |
6 |
6 |
8 |
8 |
12 |
|
| |
| Model Range: 62.5 ~125.0 Tons. |
| MODEL: DS-AHU-H |
15 |
16 |
17 |
18 |
19 |
20 |
| Norminal Capacity |
Btu/h |
750,000 |
900,000 |
990,000 |
1,125,000 |
1,300,000 |
1,500,000 |
| Norminal Tonnage |
Tons |
62.5 |
75 |
82.5 |
93.8 |
108.3 |
125 |
| Norminal Kilowatt-Hour |
KWH |
263.7 |
290.1 |
329.6 |
380.9 |
439.5 |
- |
| Air Flow |
CFM |
25,000 |
30,000 |
33,000 |
37,500 |
43,500 |
50,000 |
|
CMH |
42,475 |
50,970 |
56,067 |
63,713 |
73,907 |
84,951 |
| Static Pressure |
in. wg |
3 |
3 |
3 |
4 |
4 |
4 |
| Standard Width (mm) |
Width (mm) |
3050 |
3400 |
3650 |
3650 |
3650 |
3950 |
| Standard Height (mm) |
Height (mm) |
2100 |
2200 |
2350 |
2700 |
3050 |
3050 |
| Coil Section |
| 4-6 Row Section Length |
(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
| Tube |
Inch |
1/2" |
1/2" |
1/2" |
1/2" |
1/2" |
1/2" |
| Filter Box Panel (Optional) |
| Short Length |
mm |
700 |
700 |
700 |
700 |
700 |
700 |
| Filter |
| Hepa Filter 12”x24”x12” |
3 |
- |
3 |
- |
5 |
6 |
| Hepa Filter 24”x24”x12” |
12 |
15 |
15 |
20 |
20 |
24 |
|
|
