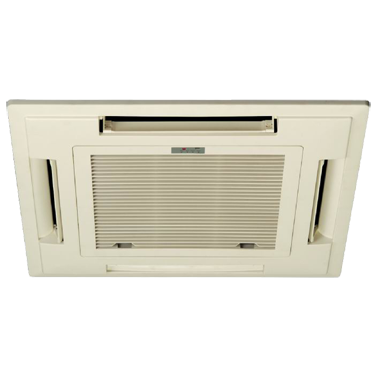

| Cassette Unit Model: CCS-DX |
12 |
18 |
25 |
30 |
36 |
363 |
403 |
| |
 |
|
|
|
|
|
|
| Condensing Unit Model |
| GS-V-CU |
12 |
18 |
25 |
30 |
36 |
36 |
40 |
| FG-H-CU |
12 |
18 |
25 |
30 |
36 |
36 |
40 |
| Nominal Capacity |
BTUH |
12,000 |
18,000 |
24,230 |
29,000 |
33,100 |
32,760 |
39,240 |
| Tons |
1 |
2 |
2 |
2.4 |
2.8 |
2.7 |
3.3 |
| WATT |
3,516 |
5,274 |
7,099 |
8,497 |
9,698 |
9,599 |
11,497 |
| Rated Air Flow At High Speed |
CFM |
350 |
500 |
700 |
800 |
950 |
950 |
1,050 |
| CMH |
595 |
849 |
1,189 |
1,359 |
1,614 |
1,614 |
1,784 |
| Fan Coil Unit |
TYPE |
Free Blow Ceiling Mounted Type |
| Evaporator Fan |
TYPE |
Single Inlet Axial Fan |
| Motor |
WATT |
37 |
44 |
50 |
115 |
| Power Supply |
V/P/Hz |
220V / 1P/ 50Hz |
| V/P/Hz |
208V / 1P/ 60Hz |
| Coil |
TYPE |
Aluminium Louver Fin With Innergroove Tube |
| Control |
TYPE |
Built In Digital Thermostat |
| Expansion Device |
TYPE |
Capillary Tube |
| Air Filter |
TYPE |
Washable P. P. NET |
| Connection |
| Suction Line |
INCH (OD) |
1/2 |
5/8 |
3/4 |
| Liquid Line |
INCH (OD) |
3/8 |
1/2 |
| Weight |
KGS. |
20 |
28 |
30 |
34 |
36 |
Condensing Unit
GS-V/FG-H |
TYPE |
Horizontal Blow Steel Cabinat Type / Vertical Blow Fibre Glass Cabinat |
| Compressor |
TYPE |
Rotory / Scroll / Reciprocation |
| Power Output |
WATT |
24 |
36 |
115 |
570 |
| Protection Devices |
TYPE |
Internal Overload Protection |
| Power Supply |
V/P/Hz |
220V / 1P / 50Hz |
415V / 3P / 50Hz |
| 220V / 1P / 60Hz |
440V / 3P / 60Hz |
| Condenser Fan |
TYPE |
Propeller Fan |
Refrigerant
(Holding Charge) |
TYPE |
R-22 (R-407C On Requset Only) |
| Connection |
| Suction Line |
TYPE |
1/2 |
5/8 |
3/4 |
| Liquid Line |
TYPE |
3/8 |
1/2 |
| Weight |
KGS. |
48 |
63 |
76 |
88 |
92 |
100 |
|
