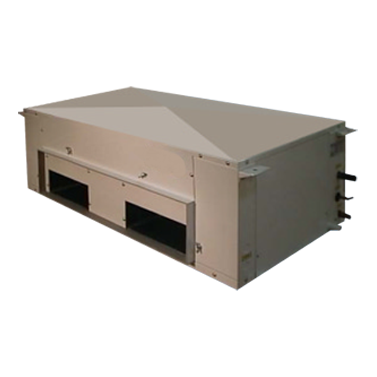

| Ducted Fan Coil Unit |
| |
 |
| Features/Benefits |
| - |
Concealed ceiling units are built into the false ceiling,
leaving only the suction and discharge grilles visible.
Because of this the grilles can be placed wherever you
want and blend with any interior decor. The grilles
allow uniform temperature distribution in large or
heavilypartitioned areas. Not only are concealed
ceiling units visually unobtrusive, they are also among
the quietest types of air conditioning. |
| |
|
|
|
| Capacity Range From: |
1.7 - 12.5 Tons |
For More Detail: |
Download |
|
| INDOOR UNIT |
| MODEL: CCHHS |
20 |
30 |
36 |
50 |
60 |
| Nominal Capacity |
|
 |
|
|
|
|
| BTUH |
20,200 |
31,400 |
37,200 |
50,500 |
61,700 |
| Tons |
1.7 |
2.6 |
3.1 |
4.2 |
5.1 |
| Watt |
5,900 |
9,200 |
10,900 |
14,800 |
18,100 |
| Evaporator Blower |
| Type |
Multi Blade Centrifugal Blower |
| Quantity |
1 |
2 |
| Wheel Dia. x Width |
Inch. |
9 x 7 |
9 x 9 |
9 x 7 |
| Air Flow Rate |
CFM |
650 |
1,000 |
1,200 |
1,700 |
2,000 |
| CMH |
1,102 |
1,695 |
2,034 |
2,881 |
3,390 |
| Motor 3 Speed |
| Quantity |
1 |
| Rated Power Input |
Watt |
246 |
316 |
680 |
| Rated Current |
Amp. |
1.67 |
2.25 |
5.09 |
| Power Supply |
V/P/Hz |
220 / 1 / 50 / 60 |
| Coil |
| Type |
Aluminium Louver Slit Fin With Innergroove Copper Tube |
| Static Pressure |
Pa |
150 |
| Air Filter |
Synthetic Filter |
| Insulation |
10 mm Rubber For Casing / 5 mm Polyethylene For Drain Pan |
| Connection |
| DX |
Suction |
5/8 |
3/4 |
| Liquid |
3/8 |
1/2 |
| Chilled Water |
In / Out |
3/4 |
| INDOOR UNIT |
| MODEL: CCHHS |
70 |
90 |
120 |
150 |
| Nominal Capacity |
|
|
|
|
|
| BTUH |
73,900 |
90,300 |
126,400 |
150,000 |
| Tons |
6.2 |
7.5 |
10.5 |
12.5 |
| Watt |
21,700 |
26,500 |
37,000 |
43,960 |
| Evaporator Blower |
| Type |
Multi Blade Centrifugal Blower |
| Quantity |
2 |
4 |
| Wheel Dia. x Width |
Inch. |
9 x 7 |
9 x 9 |
9 x 7 |
| Air Flow Rate |
CFM |
2,500 |
3,000 |
4,000 |
5,000 |
| CMH |
4,237 |
5,085 |
6,780 |
8,500 |
| Motor 3 Speed |
| Quantity |
1 |
4 |
| Rated Power Input |
Watt |
800 |
680 x 2 |
800 x 2 |
| Rated Current |
Amp. |
4.72 |
5.09 x 2 |
4.72 x 2 |
| Power Supply |
V/P/Hz |
220 / 1 / 50 / 60 |
| Coil |
| Type |
Aluminium Louver Slit Fin With Innergroove Copper Tube |
| Static Pressure |
Pa |
150 |
| Air Filter |
Synthetic Filter |
| Insulation |
10 mm Rubber For Casing / 5 mm Polyethylene For Drain Pan |
| Connection |
| DX |
Suction |
1-1/8 |
1-3/8 |
1-5/8 |
| Liquid |
5/8 |
7/8 |
| Chilled Water |
In / Out |
1 |
|
| NOTES: |
-
- |
Capacity Are Base On 27 °C DB, 19 °C WB Air Entering
35 °C Ambient Tenp., 7 °C Suction Temp. |
|
|
