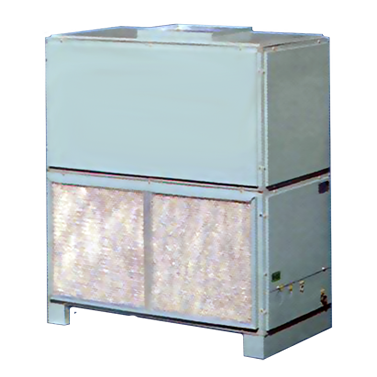

| Single Skin Air Handling Unit |
| |
 |
| Features/Benefits |
-
-
-
- |
Horizontal and vertical draw-thru arrangements for
heating, cooling, ventilation, and VAV applications
Small footprint assures rigging ease and reduced
space requirements
High-efficiency fan minimizes surging and turbulence
and reduces operating costs
Exclusive Nu-Fin coil surface provides peak heat
transfer. We delivers the air handler components for
your stringent specification requirements. The
DX-AHU series air handlers are compact and
fully assembled; they combine versatility with
economical, dependable performance. |
| |
|
|
|
| Capacity Range From: |
7 - 75 Tons |
For More Detail: |
Download |
|
| MODEL:AHU-DX |
007-009 |
010-012
|
015 |
020 |
025 |
| Blower |
|
 |
|
|
|
|
| Inch |
12" x 12" |
15" x 15" |
| mm |
304.8 x 304.8 |
381 x 381 |
| Type |
Belt - Drive |
| Qty. |
1 |
2 |
| Nominal Air Flow |
CFM |
3,000 |
4,000 |
5,000 |
6,500 |
8,000 |
| CMH |
5,100 |
6,800 |
8,500 |
11,050 |
13,600 |
| Range |
CFM |
25,00-8,500 |
3,000-5,000 |
4,000-6,000 |
5,000-8,000 |
6,000-10,000 |
| CMH |
4,250-5,950 |
5,100-8,500 |
6,800-10,200 |
8,500-13,600 |
10,200-17,000 |
| Motor |
HP |
1 |
2 |
3 |
5 |
| RPM |
1,410 |
1,420 |
1,430 |
| Volt |
220V ~ 380V ~ 415V~440V / 1-3PH / 50-60Hz |
| FLA. |
220 V |
4 |
6 |
9 |
14.2 |
| 380 V |
1.5 |
2.6 |
3.8 |
5.9 |
| 415 V |
1.3 |
2.4 |
3.4 |
5.4 |
| 440 V |
1.3 |
2.2 |
3.2 |
5.1 |
| 460 V |
1.2 |
2.1 |
3.1 |
4.9 |
| 480 V |
1.2 |
2.1 |
3 |
4.7 |
| COIL |
Type |
Plate Fin Tube |
| Face Area |
ft. ² ~ (m ²) |
5.94 (0.55) |
10.5 (0.98) |
18.05 (1.68) |
| Rows |
4 |
3 |
4 |
3 |
4 |
| Tube Size |
in. ~ (mm) |
1/2 (12.70) |
Suction OD
|
Inch |
1-1/8 |
1-3/8 |
1-5/8 |
2-1/8 |
|
mm |
28.57 |
34.92 |
41.27 |
53.97 |
| Liquid OD |
Inch |
5/8 |
7/8 |
| |
mm |
15.87 |
22.22 |
| Drain FPT. |
Inch |
3/4
|
1 |
| |
mm |
19.05 |
25.4 |
| Weight (approx..) |
lbs. |
300 |
400 |
450 |
580 |
650 |
| kgs |
136.40 |
181.80 |
204.5 |
263.6 |
295.5 |
|
| |
| MODEL:AHU-DX |
030 |
040 |
050 |
060 |
075 |
| Blower |
Inch |
18” x 18” |
20” x20” |
22” x22” |
| mm |
457.2 x 457.2 |
508 x 508 |
559 x 559 |
| Type |
Belt - Drive |
| Qty. |
2 |
| Nominal Air Flow |
CFM |
10,000 |
12,500 |
15,000 |
20,000 |
25,000 |
| CMH |
17,000 |
21,250 |
25,500 |
34,000 |
42,500 |
| Range |
CFM |
8,000-12,000 |
10,000-15,000 |
12,000-18,000 |
18,000-22,000 |
22,000-28,000 |
| CMH |
13,600-20,400 |
17,000-25,500 |
20,400-30,600 |
30,600-37,400 |
37,400-47,600 |
| Motor |
HP |
7.5 |
10 |
12.5 |
15 |
20 |
| RPM |
1,440 |
1,450 |
| Volt |
220V ~ 380V ~ 415V~440V / 1-3PH / 50-60Hz |
| FLA. |
220 V |
22.8 |
36.6 |
44 |
44.0 |
58 |
| 380 V |
9.5 |
15.3 |
18.4 |
18.4 |
24.2 |
| 415 V |
8.7 |
14.0 |
16.8 |
16.8 |
22.2 |
| 440 V |
8.2 |
13.2 |
15.9 |
15.9 |
20.9 |
| 460 V |
7.9 |
12.6 |
15.2 |
15.2 |
20 |
| 480 V |
7.5 |
12.1 |
14.6 |
14.6 |
19.2 |
| COIL |
Type |
Plate Fin Tube |
| Face Area |
ft. ² |
22.22 |
6.56 |
33.94 |
41.25 |
47.74 |
| m ² |
2.06 |
2.47 |
3.15 |
3.83 |
4.44 |
| Rows |
4 |
| Tube Size |
in. ~ (mm) |
1/2 (12.70) |
Suction OD
|
Inch |
2-1/8 |
2-3/8 |
2-5/8 |
|
mm |
53.97 |
53.97 |
66.67 |
| Liquid OD |
Inch |
7/8 |
| |
mm |
22.22 |
| Drain FPT. |
Inch |
1
|
1-1/4 |
| |
mm |
25.4 |
31.75 |
| Weight (approx..) |
lbs. |
850 |
940 |
1,030 |
1,100 |
1,200 |
| kgs |
386.4 |
427.3 |
468.0 |
500 |
545.5 |
|
| |
|
