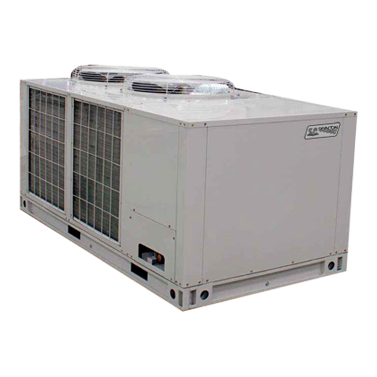

| Air Cooled Condensing Unit |
| |
 |
| Features/Benefits |
| - |
The PNSA-U-CU unit has a compact design that is up to 30% smaller than earlier air-cooled Condenser. The
compact footprint can yield substantial installation
savings by requiring less structural steel, concrete,
security fencing or architectural screening. The PNSA-CU unit is delivered
as a complete package for easy
installation.A quick start-up is assured once
installation is complete, since each PNSA-CU unit is manufactured at an ISO 9002 listed
manufacturing facility to ensure quality In addition, all units are factory run tested under full load to provide reliable start-up. |
| |
|
|
|
| Capacity Range From: |
6.7 - 32.4 Tons |
For More Detail: |
Download |
|
MODEL: PNSA-U-CU |
007(H) |
009(H) |
010(H) |
012(H) |
015(H) |
020(H) |
025(2H) |
030(2H) |
040(2H) |
| Nominal Cooling Capacity |
|
 |
|
|
|
|
|
|
|
|
| BTUH |
80,000 |
90,700 |
100,000 |
120,000 |
150,000 |
200,000 |
250,000 |
300,000 |
400,000 |
| Tons |
6.67 |
7.56 |
9.58 |
10.38 |
12.83 |
15.67 |
19.17 |
23.25 |
32.42 |
| KWH |
23.4 |
26.6 |
33.7 |
36.5 |
45.1 |
55.1 |
67.4 |
81.8 |
114 |
| Rated Voltage |
380V / 3P / 50Hz - 440V / 3P / 60Hz |
| Power Consumption |
7.39 |
8.67 |
10.19 |
12.03 |
15.32 |
19.9 |
24.06 |
29.71 |
40.09 |
| Compressor Type |
Hermetic ( Scroll ) |
| Circuit |
1 |
2 |
| Condenser Coil |
Type |
Aluminium / Copper Corrugated Fin With Inner Groove Copper Tube |
| Face area |
Sq. Ft. |
14.22 |
24.00 |
32.00 |
41.67 |
47.78 |
67.22 |
| Rows..Fins/In |
2....16 |
3....14 |
3....10 |
| Tube Size |
Inch |
3/8 |
| Condenser Fan |
Type |
Propeller Fan : Vertical Discharge : Direct Drive |
| Diameter (in) |
|
30 |
| Diameter (mm) |
|
761 |
| Rpm. |
|
900 |
| Qty./Unit |
|
1 |
2 |
3 |
| EACH MOTOR (H.P.) |
|
3/4 |
1 |
3/4 |
1 |
| Air Quantity (CFM) |
|
7,000 |
8,000 |
10,000 |
14,000 |
20,000 |
30,000 |
| Refrigerant |
Type |
R-22 (R-407C On Requset Only) |
| Charge |
Nitrogen |
| Connections |
| Suction |
(in.) |
1-1/8 |
1-3/8 |
1-5/8 |
1-3/8 |
1-5/8 |
| Liquid |
(in.) |
5/8 |
7/8 |
5/8 |
7/8 |
| Weight Operation |
(Kgs.) |
198 |
215 |
284 |
317 |
405 |
443 |
474 |
528 |
686 |
| Compressor |
| Voltage / Phase / Hz |
380V / 3P / 50Hz - 440V / 3P / 60Hz |
| Power Input |
6,548 |
7,821 |
8,957 |
10,800 |
13,622 |
18,200 |
10,800 |
13,622 |
18,200 |
| FLA. (Amp.) |
12.1 |
14.3 |
20.7 |
22.9 |
24 |
35.7 |
22.9 |
24.2 |
35.7 |
| LRA. (Amp.) |
98 |
130 |
130 |
145 |
175 |
215 |
145 |
175 |
215 |
| Fan Motor (Each) |
| Voltage / Phase / Hz |
380V / 3P / 50Hz - 440V / 3P / 60Hz |
| Quantity. |
1 |
2 |
3 |
| Power Input (Watt) |
850 |
1,233 |
850 |
1,233 |
| FLA. (Amp.) |
1.2 |
2.3 |
1.2 |
2.3 |
|
NOTES:
Standard heating conditions: |
-
-
- |
* Nominal capacity based on 7.2 deg. C section temperature and 35 deg. C ambient temperature
** Power consumption, FLA and LRA rating depent on type of compressor used.
*** Refer to unit data plate for better rating |
|
|
