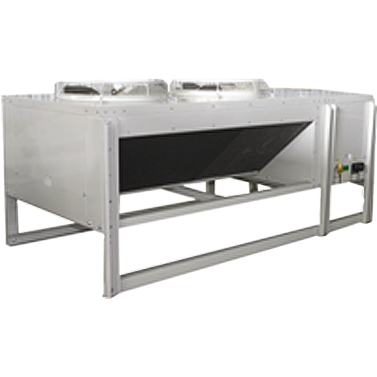

| Air Cooled Condensing Unit |
| |
 |
| Features/Benefits |
| - |
The PNSA-CU unit has a compact design that is up to
30% smaller than earlier air-cooled chillers. The
compact footprint can yield substantial installation
savings by requiring less structural steel, concrete,
security fencing or architectural screening. The
PNSA-CU unit is delivered as a complete package for
easy installation. A quick start-up is assured once
installation is complete, since each PNSA-CU unit
is manufactured at an ISO 9002 listed manufacturing
facility to ensure quality In addition, all units are factory
run tested under full
load to provide reliable start-up. |
| |
|
|
|
| Capacity Range From: |
1 - 10 Tons |
For More Detail: |
Download |
|
| MODEL: PNSA-CU |
007 |
009 |
010 |
012 |
| Nominal Cooling Capacity |
|
 |
|
|
|
| BTUH |
80,000 |
90,700 |
115,000 |
124,500 |
| Tons |
7 |
8 |
10 |
10 |
| KWH |
23.4 |
26.6 |
33.7 |
36.5 |
| Rated Voltage |
380V / 3P / 50Hz |
| 440V / 3P / 60Hz |
| Compressor Type |
Hermetic |
| Condenser Coil |
Type |
Plate Fin / Aluminium Fin & Copper Tube Or Copper Fin |
| Face area |
Sq. Ft. |
12.44 |
12.44 |
17.36 |
7.36 |
| Rows..Fins/In |
3....14 |
3....14 |
3....14 |
3....14 |
| Tube Size |
Inch |
3/4 |
3/4 |
1/2 |
1/2 |
| Condenser Fan |
Type |
Propeller Fan : Vertical Discharge : Direct Drive |
| Diameter |
Inch |
30 |
| Diameter |
mm |
761 |
| Rpm. |
900 |
| Qty. |
1 |
1 |
2 |
2 |
| Air Quantity |
CFM |
7,000 |
8,000 |
10,000 |
10,000 |
| Air Quantity |
CMH |
11,900 |
13,600 |
17,000 |
17,000 |
| Refrigerant |
Type |
R-22 (R-407C On Requset Only) |
| Charge |
Holding |
| Connections |
| Suction |
(in.) |
1-1/8 |
1-3/8 |
1-3/8 |
1-3/8 |
| Liquid |
(in.) |
5/8 |
5/8 |
5/8 |
5/8 |
| Weight Operation |
(Kgs.) |
620 |
650 |
940 |
950 |
| Compressor |
| Voltage / Phase / Hz |
380V / 3P / 50Hz |
| 440V / 3P / 60Hz |
| FLA. |
Amp. |
15.8 |
19.3 |
21.1 |
27.6 |
| LRA. |
Amp. |
91.1 |
86.5 |
104 |
135 |
| Fan Motor (Each) |
| Voltage / Phase / Hz |
380V/3P/50Hz |
220V/1P/50Hz |
380V/3P/50Hz |
| 440V/3P/60Hz |
208V/1P/60Hz |
440V/3P/60Hz |
| FLA. |
Amp. |
1.8 |
0.98 |
|
| |
| MODEL: PNSA-CU |
15 |
20 |
25 |
30 |
35 |
40 |
| Nominal Cooling Capacity |
BTUH |
154,000 |
188,000 |
230,000 |
279,000 |
347,500 |
389,000 |
| Tons |
13 |
16 |
19 |
23 |
29 |
32.42 |
| KWH |
45.1 |
55.1 |
67.4 |
81.8 |
101.8 |
114 |
| Rated Voltage |
380V / 3P / 50Hz |
| 440V / 3P / 60Hz |
| Compressor Type |
Semi-Hermetic |
| Condenser Coil |
Type |
Plate Fin / Aluminium Fin & Copper Tube Or Copper Fin |
| Face area |
Sq. Ft. |
21.53 |
28.33 |
35.83 |
50.55 |
50.55 |
65 |
| Rows..Fins/In |
|
3....14 |
3....14 |
3....14 |
3....14 |
3....14 |
3....14 |
| Tube Size |
Inch |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
| Condenser Fan |
Type |
Propeller Fan : Vertical Discharge : Direct Drive |
| Diameter |
Inch |
30 |
| Diameter |
mm |
761 |
| Rpm. |
900 |
| Qty. |
2 |
2 |
3 |
3 |
3 |
4 |
| Air Quantity |
CFM |
14,000 |
20,000 |
21,000 |
30,000 |
30,000 |
40,000 |
| Air Quantity |
CMH |
23,800 |
34,000 |
35,700 |
51,000 |
51,000 |
68,000 |
| Refrigerant |
Type |
R-22 (R-407C On Requset Only) |
| Charge |
Holding |
| Connections |
| Suction |
(in.) |
1-5/8 |
1-5/8 |
1-5/8 |
2-1/8 |
2-1/8 |
2-1/8 |
| Liquid |
(in.) |
5/8 |
7/8 |
7/8 |
7/8 |
7/8 |
7/8 |
| Weight Operation |
(Kgs.) |
1180 |
1650 |
1980 |
2170 |
2240 |
2680 |
| Compressor |
| Voltage / Phase / Hz |
380V / 3P / 50Hz |
| 440V / 3P / 60Hz |
| FLA. |
Amp. |
28.6 |
44 |
56 |
68 |
67.5 |
95 |
| LRA. |
Amp. |
120 |
173 |
223 |
253 |
225 |
345 |
| Fan Motor (Each) |
| Voltage / Phase / Hz |
380V/3P/50Hz |
| 440V/3P/60Hz |
| FLA. |
Amp. |
1.8 |
2.3 |
1.8 |
2.3 |
|
|
