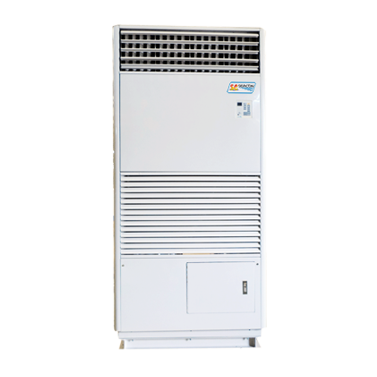

| Package Water Cooled Floor Standing Unit |
| |
 |
| Features/Benefits |
-
-
-
- |
Vertical arrangements for heating, cooling, ventilation
applications
Small footprint assures rigging ease and reduced space
requirements
High-efficiency fan minimizes surging and turbulence
and reduces operating costs
Exclusive Nu-Fin coil surface provides peak heat
transfer. We delivers the air handler
components for
your stringent specification requirements. The FS-WC
series floor standing unit are compact and fully
assembled; they combine versatility with economical,
dependable performance. |
| |
|
|
|
| Capacity Range From: |
0.83 - 5 Tons |
For More Detail: |
Download |
|
| Fan Coil Unit Model: FS-WC |
005 |
006 |
008 |
012 |
020 |
025 |
| Mominal Capacity |
|
 |
|
|
|
|
|
| BTUH |
50,000 |
60,000 |
80,000 |
120,000 |
200,625 |
256,925 |
| Tons |
4 |
5 |
7 |
10 |
17 |
21 |
| Watt |
14,654 |
17,584 |
23,446 |
35,169 |
58,797 |
75,297 |
| Rated Air Flow At High Speed |
CFM |
1,600 |
2,000 |
3,000 |
4,000 |
6,000 |
8,000 |
| CMH |
2,718 |
3,398 |
5,097 |
6,796 |
10,194 |
13,592 |
| Fan Coil Unit |
Type |
Free Blow Or Ducted Floor Standing Type |
| Motor Power Supply |
Watt |
352 |
290 x 2 |
2,200 |
2,200 |
| Amp. |
3.2 |
2.25 x 2 |
5 |
5 |
| V/P/Hz |
208~220V/ 3PH / 50-60Hz |
|
380V ~ 415V / 3PH / 50Hz |
| Compressor |
Type |
Scroll (Hermatic Type) |
| Watt |
3,728 |
4,472 |
5,963 |
8,944 |
5,593 x 2 |
7,457 x 2 |
| H.P. |
5 |
6 |
8 |
12 |
7.5 x 2 |
10 x 2 |
| Qty. |
1 |
2 |
| Power Supply |
V/P/Hz |
208~220V ~ 380V ~ 415V~440V / 3PH / 50-60Hz |
| Water Cooled Condenser |
Type |
Shell & Tube |
| Material |
copper nickel 90/10 |
| Each |
1 |
| GPM |
12.5 |
15 |
20 |
30 |
45 |
60 |
| Entering Water Temperature |
º C |
32 º C |
| leaving Water Temperature |
º C |
38 º C |
| Water pressure Drop |
FT.WG |
10.8 |
19 |
11.5 |
9.5 |
2 x 14.9 |
2 x 9.5 |
| No. of Water Pass |
4 |
| Water Connection In |
Inch |
1-1/2” |
2-1/2” |
| Water Connection Out |
Inch |
1-1/2” |
2-1/2” |
| Coil |
Type |
Sluminium Or Copper Corrugated Fin WIth Plain Tube |
| Control |
Type |
Control DigitalThermostat |
| Expansion Device |
Type |
Thermoststic Expansion Valve |
| Insulation |
Type |
Fiber Glass |
| Air Filter |
Type |
Washable P. P. Net |
|
| |
|
