| Air Cooled Condensing Unit (Fiber Glass) |
| |
 |
| Features/Benefits |
| - |

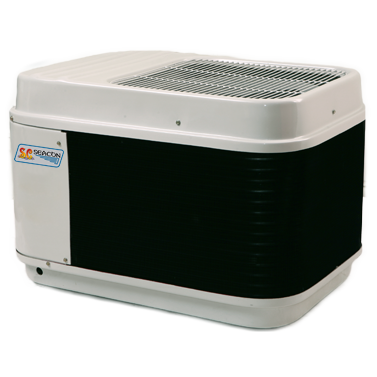

Fiber Glass units: The casing of "FG-H-CU"
condensing unit is made from finely selected quality
fiberglass resists to corrosion and rust in any kind of
weather conditions include marine industries, an ideal
choice for marine,
industries, tannery and seafood processing factories located in seashore where acidic
climate erodes metalic surfaces. Available with Copper
Fin and Aluminium Fin to select for the application.
Fiber Glass units can also act as a Ex-proof unit by
changing the motor to Ex-proof motor and Ex-proof
electrical terminal box with liquid tight flexible
connection between equipment and control box. |
| |
|
|
|
| Capacity Range From: |
0.83 - 5 Tons |
For More Detail: |
Download |
|
| MODEL: FG-CU |
10 |
12 |
18 |
25 |
30 |
361 |
363 |
50 |
60 |
| Nominal Capacity |
|
 |
|
|
|
|
|
|
|
|
| BTUH |
10,000 |
12,000 |
18,000 |
24,000 |
30,000 |
36,000 |
36,000 |
50,000 |
60,000 |
| Tons |
0.83 |
1 |
1.5 |
2 |
2.5 |
3 |
3 |
4.17 |
5 |
| WATT |
2,928 |
3,514 |
5,271 |
7,027 |
8,784 |
10,541 |
10,541 |
14,641 |
17,569 |
| Compressor |
TYPE |
Rotory / Scroll / Reciprocating |
| Power |
WATT |
953 |
1,203 |
1,956 |
2,476 |
2,776 |
3,196 |
3,166 |
4,582 |
5,402 |
| Current |
AMP |
4.2 |
6.16 |
8.9 |
10.91 |
16.4 |
17.1 |
7.1 |
9.79 |
10.89 |
| Power Supply |
V/P/Hz |
220V/1P/50Hz |
380V ~ 415V/3PH/50Hz |
| Power Supply |
V/P/Hz |
208V/1P/60Hz |
440V ~ 480V/3PH/60Hz |
| Fan |
TYPE |
Propeller Fan “Plastic“ |
| QTY. |
1 |
2 |
| Motor |
| Power |
WATT |
33 |
57 |
117 |
117 x 2 |
| Current |
AMP |
0.35 |
0.5 |
0.89 |
| Power Supply |
V/P/Hz |
220V/1P/50Hz |
380V/1P/50Hz |
| Power Supply |
V/P/Hz |
208V/1P/60Hz |
440V/1P/60Hz |
| Coil |
TYPE |
Aluminium Louver Fin With Inner Groove Copper Tube |
| Copper Louver Fin With Inner Groove Copper Tube |
| Connection |
| Suction Line |
INCH (OD) |
1/2 |
5/8 |
3/4 |
| Liquid Line |
INCH (OD) |
3/8 |
1/2 |
| Weight |
KGS. |
44 |
48 |
64 |
75 |
88 |
92 |
110 |
120 |
| Refrigerant |
TYPE |
R-22 (R-407C On Request Only) |
|
|
